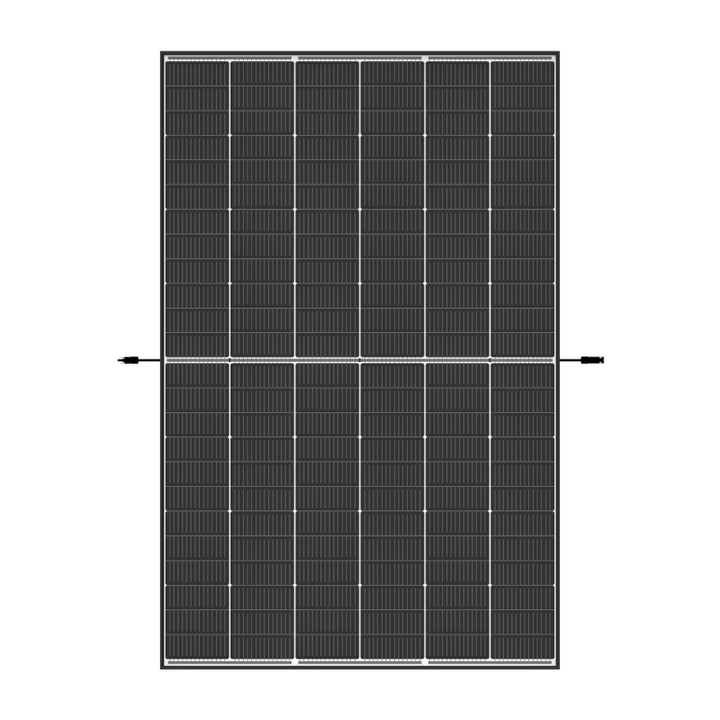

Trina Vertex S+ 450W N-Type Solar Panel – Black Frame

Trina Vertex S+ 450W N-Type Solar Panel – Black Frame

Trina Solar presents the Vertex S+ series, a new generation of high-performance PV modules. As the first Trina product line to launch with a 25-year product warranty, the Vertex S+ series sets new standards in reliability and efficiency. Designed for both residential and commercial installations, this glass-glass module delivers up to 450 W output in a compact footprint.

With multi-busbar technology, it ensures improved light trapping, lower series resistance, and enhanced current collection. The module’s construction also provides 30 years of performance warranty and excellent resistance in harsh environmental conditions.

Key Benefits:

• Exceptional durability in demanding weather and fire conditions

• N-type cell technology with only 1% degradation in year one, followed by 0.4% annually

• Advanced multi-busbar design for increased performance

• 30 mm robust frame for improved stability

• Compatible with standard system design and layout tools

• 25-year product warranty

• 30-year linear performance warranty

• Hail resistance class 3

Product Specifications – Trina TSM-NEG9.28 Vertex S+ 450W

• Rated Power: 450 Wp

• Cell Type: 144 monocrystalline N-type cells

• Module Efficiency: 22.5%

• Frame Colour: Black

• Backsheet: White

• Dimensions (H × W × D): 1762 × 1134 × 30 mm

• Weight: 21.0 kg

• Connector Type: MC4 EVO2

• Cable Length: 1100 mm (portrait orientation)

• Snow Load: Up to 5,400 Pa

• Wind Load: Up to 4,000 Pa

• Temperature Coefficient (Pmax): -0.30% / °C

• Fire Rating: Not certified A1

• New Frame Variant B (see datasheet)
