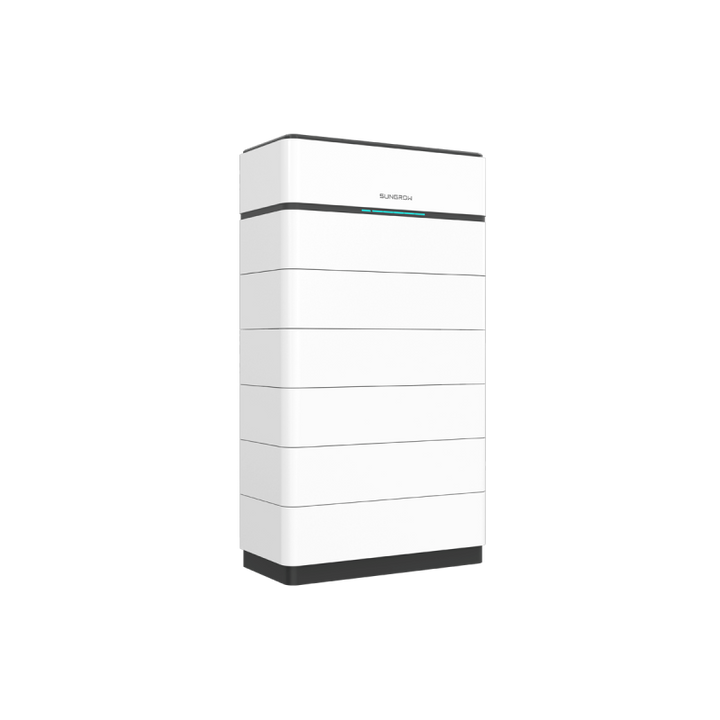

Sungrow SBH300 Battery – High-Voltage Lithium Iron Phosphate (LFP) Battery – 30 kWh
The Sungrow SBH300 battery system begins with 6 battery modules, offering a total capacity of 30 kWh. The system is modular and scalable up to 8 modules, allowing future expansion up to 40 kWh. Thanks to its sleek design and lightweight 45 kg per module, the battery can be easily installed by a single person using plug-and-play setup.
Once installed, the compatible Sungrow hybrid inverter will automatically detect and integrate the storage unit into the overall system. The advanced backup system includes intelligent load control and a switch-over time of less than 10 ms, ensuring a reliable power supply at all times.
Key Benefits
-
Continuous 50 A charge and discharge current
-
Modular design – expandable up to 40 kWh
-
Safe and durable LFP cell chemistry (Lithium Iron Phosphate)
-
Certified multi-level protection system (e.g. VDE 2510-50)
-
Simple plug-and-play installation
-
Strong emergency and backup power capabilities
-
10-year product warranty
Technical Specifications
-
Battery capacity: 30 kWh
-
Nominal voltage: 422.4 V
-
Max. charge/discharge current: 50 A
-
Weight: 286 kg
-
Protection class: IP55
-
Dimensions (H × W × D): 675 × 1220 × 350 mm
Scope of Delivery
-
6 × Sungrow SBH 5 kWh Battery Modules
-
1 × Sungrow SBH Accessory Set (Base, Top Cover, Switch Unit)
