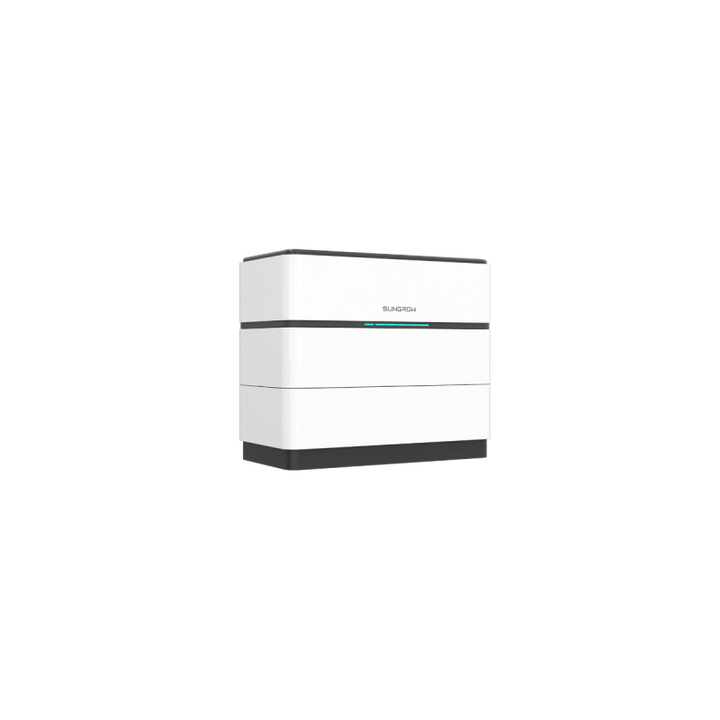

Sungrow SBH100 Battery – Modular High-Voltage Storage System (10 kWh)
Note: The SBH battery is only compatible with Sungrow SHT series hybrid inverters (15–25 kW).
Parallel connection is not supported in the European market.
The Sungrow SBH100 battery system starts with 2 modules and can be expanded up to 8 modules, allowing for a scalable capacity from 10 kWh to 40 kWh. Its modular structure and slimline design enable quick and easy plug-and-play installation.
The Sungrow hybrid inverter detects the battery automatically after installation and seamlessly integrates it into the system. With an ultra-fast switchover time of under 10 ms, the SBH series ensures reliable backup power with modern load management.
Key Advantages
-
Continuous 50 A charge and discharge current
-
Modular and expandable system for lifelong flexibility
-
Lithium iron phosphate (LFP) cell chemistry
-
Certified multi-layer safety protection, incl. VDE 2510-50
-
Plug-and-play installation with minimal effort
-
Powerful backup and off-grid capability
-
10-year product warranty
Technical Specifications
-
Usable capacity: 10 kWh
-
Nominal voltage: 140.8 V
-
Max. charge/discharge current: 50 A
-
Weight: 106 kg
-
Protection rating: IP55
-
Dimensions (H × W × D): 675 × 580 × 350 mm
Scope of Delivery
-
2 × Sungrow SBH 5 kWh Battery Modules
-
1 × Sungrow SBH Accessory Kit (Base, Top Cover, Switch Unit)
