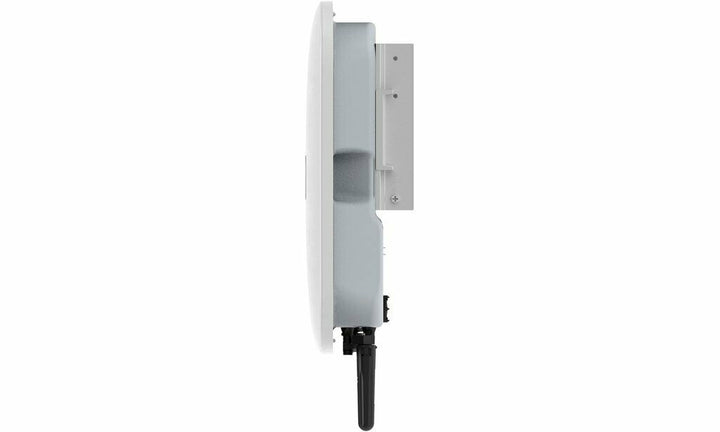

SUN2000-12-25 KTL-M5, string inverter PV inverter, 2 MPPT, 3-phase

From £1,194.44
People are viewing this right now
sold in last hours

AC nominal power: 12.00 kVA

12.00 kVA
17.00 kVA
20.00 kVA
25.00 kVA
36.00 kVA
40.00 kVA
50.00 kVA
£1,194.44
Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Huawei Inverter Inventer
Tags: Inventer
Description

Product Information: SUN2000-12-25KTL-M5, String Inverter — PV Inverter, 2 MPPT, 3-Phase

SUN2000-12-25KTL-M5, String Inverter — PV Inverter, 2 MPPT, 3-Phase

This inverter from Huawei offers a maximum AC nominal power of 13,20 - 27,50 kVA / kW.
With compact dimensions of 460 x 546 x 228 mm, it is suitable for a wide range of applications, from residential PV systems to larger solar projects.
Its robust design, combined with a 10-year product warranty, ensures a sustainable investment and long-term energy reliability.

Key Features at a Glance:

  • AC Nominal Power: 12,00-25,00 kVA
  • Phases: 3-phase
  • Maximum AC Output: 13,20-27,50 kVA
  • Maximum MPP Input Voltage: 1000 V
  • Number of String Inputs: 4
  • Number of MPP Trackers: 2
  • Product Warranty: 10 years

Optical Features:

  • Integrated Display: not available
  • Dimensions: 460 x 546 x 228 mm
  • Weight: 21 kg

Technical Details Overview:

  • Phases: 3-phase
  • AC Nominal Power: 12,00-25,00 kVA
  • Maximum AC Output: 13,20-27,50 kVA
  • Number of String Inputs: 4
  • Number of MPP Trackers: 2
  • Maximum MPP Input Voltage: 1000 V
  • Minimum MPP Input Voltage: 200 V
  • Maximum DC Input Voltage: 1,100.00 V
  • Maximum DC Input Current: 60.00 A

Efficiency:

  • European Efficiency: 97,90 - 98,20%
  • Maximum Efficiency: 98,40%
  • Boost Converter: Yes

Protection and Warranty:

  • Enclosure Rating: IP66
  • Arc Fault Circuit Interrupter (AFCI): Yes
  • Product Warranty: 10 years
  • Warranty Provider: Huawei

For further technical specifications, warranty details, and user manuals, please refer to our download section.

Need help designing your PV system?

Discover our all-in-one service for your personal energy transition. We guide you through the planning process, supply all essential components, and support you from system design through to installation and beyond.
Your customised path to a solar-powered future starts here – simple, efficient, and with us as your trusted partner!

Feel free to contact us: info@solar-worldltd.co.uk



AC Nominal Power: 12.00-25.00 kVA
Number of MPP Trackers: 2 units
Number of String Inputs: 4 units
Boost Converter: Yes
Width: 546 mm
Phases: 3-phase
European Efficiency: 97,90-98,20%
Arc Fault Circuit Interrupter (AFCI): Yes
Warranty Provider: Huawei
Enclosure Rating: IP66
Weight: 21 kg
Height: 228 mm
Length: 460 mm
Maximum AC Output: 13,20 - 27,15 kVA
Maximum DC Input Voltage: 1,100.00 V
Maximum DC Input Power: 18,00-37,50 kWp
Maximum MPP Input Voltage: 1000 V
Maximum DC Input Current: 60.00 A
Maximum Efficiency: 98,40%
Product Warranty: 10 years
Interface: RS485
Integrated Display: Not available
Additional Information
AC nominal power

12.00 kVA, 17.00 kVA, 20.00 kVA, 25.00 kVA, 36.00 kVA, 40.00 kVA, 50.00 kVA
